Cleveland

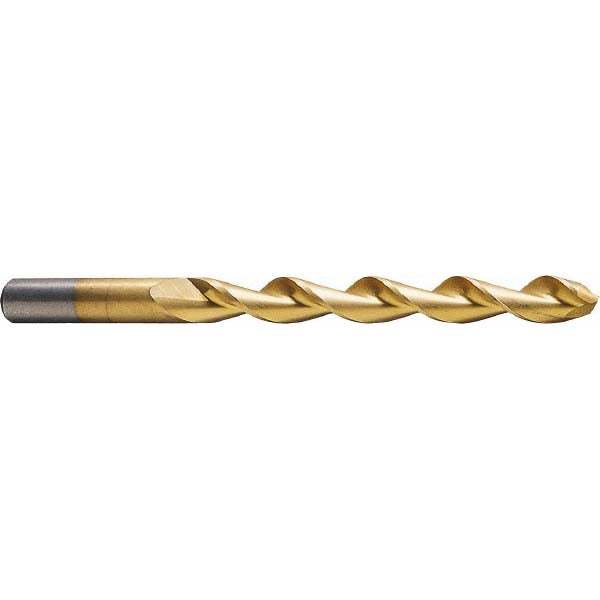

#25 HSS Drill Bit, TiN, 118° point - Cleveland C03738
MFR# C03738
$5.55List $7.11
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Cleveland C03738 is a #25 HSS drill bit with a TiN finish, 118° point. Suited for steel, cast iron. 1-7/8 flute length, 3 overall length.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size0.1495
Drill bit size range0.1000 - 0.1500
Drill bit size wire#25
Drill point angle degrees118
Flute length in1-7/8
Flute typeParabolic
Maximum drilling depth2.7500
Overall length in3
Point typeNotched
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3906
Shank typeStraight
Specification designationANSI
Web configurationTapered
Web thinningWeb-Thinned
