Cleveland

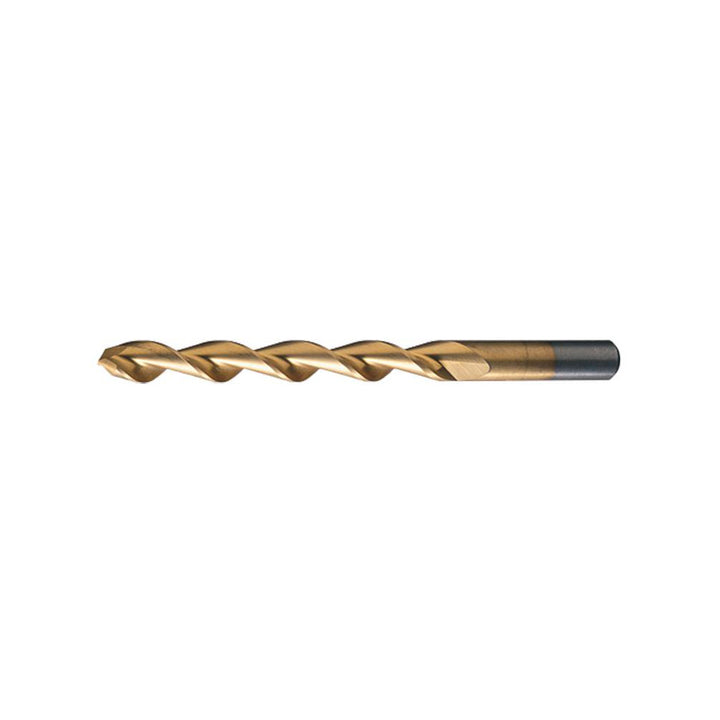

3/16" HSS Drill Bit, TiN, 118° point - Cleveland C03753
MFR# C03753Series 2065TN
$6.43List $8.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
CoatingTiN
Description
The Cleveland C03753 is a 3/16" HSS drill bit with a TiN finish, 118° point. Suited for steel, cast iron. Series 2065TN.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute length2.3130
Flute typeParabolic
Maximum drilling depth2.9375
Number of flutes2
Overall length3.5000
Point typeNotched
Primary workpiece materialSteel; Cast Iron
Shank diameter in3/16
Shank length1.1875
Shank typeStraight
Specification designationANSI
StandardsASME B94.11M
Web configurationTapered
Web thinningWeb-Thinned
