Cleveland

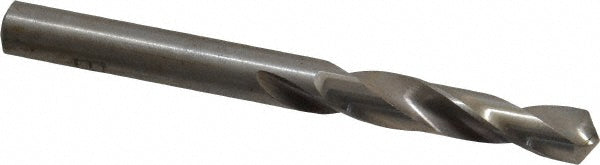

Letter B High-Speed Steel Short Drill Bit, 118° point - Cleveland C04502
MFR# C04502Series 2120
$3.58List $4.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C04502 is a Letter B High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 1-3/8 flute length, 2-1/2 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit size0.2380
Drill bit size letterB
Drill bit size range0.2000 to 0.2500
Drill length typeShort
Drill point angle118
Flute length in1-3/8
Flute typeSpiral
Number of flutes2
Overall length in2-1/2
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2380
Shank length in1-1/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
