Cleveland

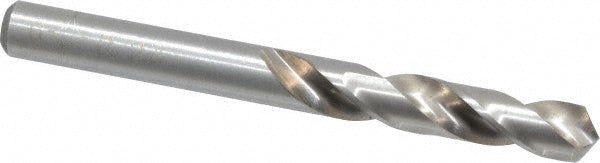

Letter G High-Speed Steel Short Drill Bit, 118° point - Cleveland C04515
MFR# C04515Series 2120
$3.97List $5.08
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C04515 is a Letter G High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 1-7/16 flute length, 2-5/8 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size0.2610
Drill bit size letterG
Drill bit size range0.2500 to 0.3000
Drill length typeShort
Drill point angle118
Flute length in1-7/16
Flute typeSpiral
Number of flutes2
Overall length in2-5/8
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2610
Shank length in1-3/16
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
