Cleveland

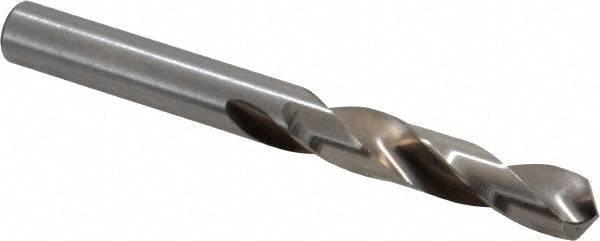

Letter M High-Speed Steel Short Drill Bit, 118° point - Cleveland C04533
MFR# C04533Series 2120
$5.32List $6.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C04533 is a Letter M High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 1-9/16 flute length, 2-3/4 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size0.2950
Drill bit size letterM
Drill bit size range0.2500 to 0.3000
Drill length typeShort
Drill point angle118
Flute length in1-9/16
Flute typeSpiral
Number of flutes2
Overall length in2-3/4
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2950
Shank length in1-3/16
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
