Cleveland
21/64" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04550
MFR# C04550Series 2120
$5.22List $6.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/64
Flutes2
Description

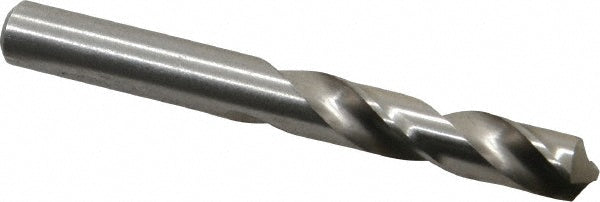

The Cleveland C04550 is a 21/64" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 1-11/16 flute length, 2-15/16 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in21/64
Drill bit size range0.3000 to 0.3500
Drill length typeShort
Drill point angle118
Flute length in1-11/16
Flute typeSpiral
Number of flutes2
Overall length in2-15/16
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.3281
Shank length in1-1/4
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
