Cleveland

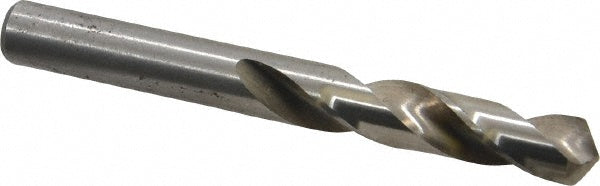

Letter S High-Speed Steel Short Drill Bit, 118° point - Cleveland C04560
MFR# C04560Series 2120
$6.37List $8.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C04560 is a Letter S High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 1-3/4 flute length, 3-1/16 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size0.3480
Drill bit size letterS
Drill bit size range0.3000 to 0.3500
Drill length typeShort
Drill point angle118
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in3-1/16
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.3480
Shank length in1-5/16
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
