Cleveland

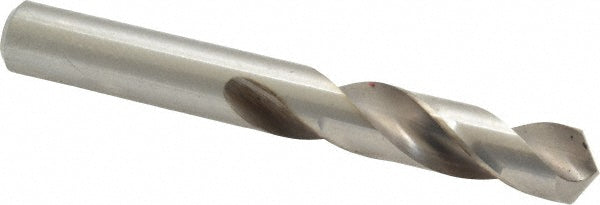

27/64" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04588
MFR# C04588Series 2120
$8.32List $10.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
Flutes2
Description
The Cleveland C04588 is a 27/64" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 2 flute length, 3-3/8 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in27/64
Drill bit size range0.4000 to 0.4500
Drill length typeShort
Drill point angle118
Flute length in2
Flute typeSpiral
Number of flutes2
Overall length in3-3/8
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.4219
Shank length in1-3/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
