Cleveland

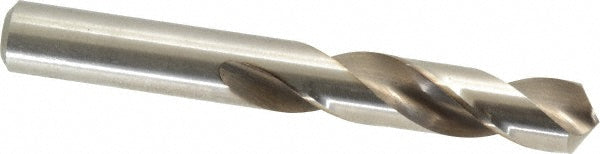

7/16" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04591
MFR# C04591Series 2120
$9.06List $11.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
Description
The Cleveland C04591 is a 7/16" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 2-1/16 flute length, 3-7/16 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in7/16
Drill bit size range0.4000 to 0.4500
Drill length typeShort
Drill point angle118
Flute length in2-1/16
Flute typeSpiral
Number of flutes2
Overall length in3-7/16
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.4375
Shank length in1-3/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
