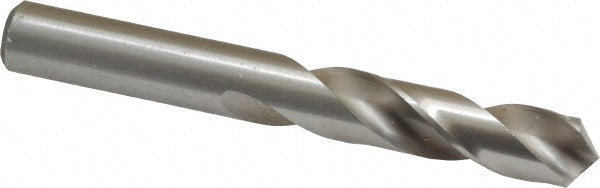

15/32" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04596

Cleveland

15/32" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04596

MFR# C04596Series 2120

$10.85List $13.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/32
Flutes2

Description

The Cleveland C04596 is a 15/32" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 2-1/8 flute length, 3-5/8 overall length. Series 2120.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in15/32
Drill bit size range0.4500 to 0.5000
Drill length typeShort
Drill point angle118
Flute length in2-1/8
Flute typeSpiral
Number of flutes2
Overall length in3-5/8
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.4688
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
