Cleveland

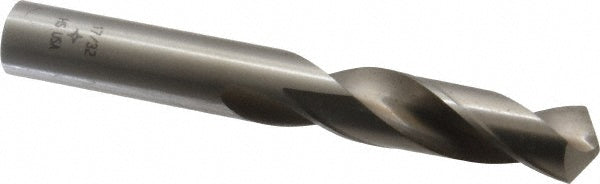

17/32" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04606
MFR# C04606Series 2120
$32.85List $42.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
Flutes2
Description
The Cleveland C04606 is a 17/32" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 2-3/8 flute length, 3-7/8 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in17/32
Drill bit size range0.5000 to 0.6000
Drill length typeShort
Drill point angle118
Flute length in2-3/8
Flute typeSpiral
Number of flutes2
Overall length in3-7/8
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.5313
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
