Cleveland

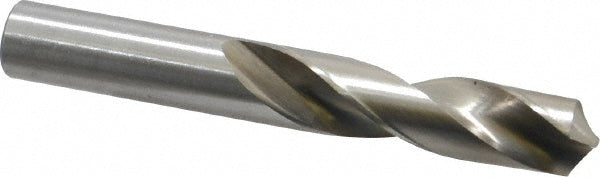

9/16" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04612
MFR# C04612Series 2120
$33.62List $43.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
Flutes2
Description
The Cleveland C04612 is a 9/16" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 2-1/2 flute length, 4 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in9/16
Drill bit size range0.5000 to 0.6000
Drill length typeShort
Drill point angle118
Flute length in2-1/2
Flute typeSpiral
Number of flutes2
Overall length in4
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.5625
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
