Cleveland

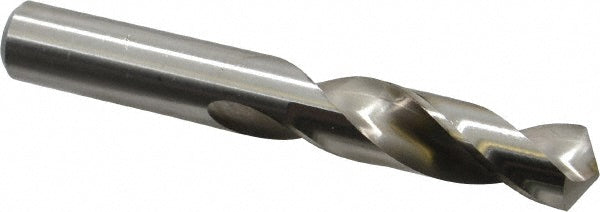

21/32" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04627
MFR# C04627Series 2120
$44.60List $56.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/32
Flutes2
Description
The Cleveland C04627 is a 21/32" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 2-7/8 flute length, 4-1/2 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in21/32
Drill bit size range0.6000+
Drill length typeShort
Drill point angle118
Flute length in2-7/8
Flute typeSpiral
Number of flutes2
Overall length in4-1/2
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.6563
Shank length in1-5/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
