45/64" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04634

Cleveland

45/64" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04634

MFR# C04634Series 2120

$50.75List $65.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size45/64
Flutes2

Description

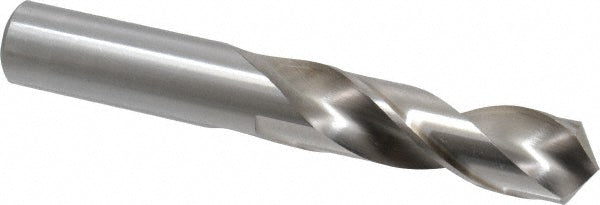

The Cleveland C04634 is a 45/64" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 3 flute length, 4-3/4 overall length. Series 2120.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in45/64
Drill bit size range0.6000+
Drill length typeShort
Drill point angle118
Flute length in3
Flute typeSpiral
Number of flutes2
Overall length in4-3/4
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.7031
Shank length in1-3/4
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
