Cleveland

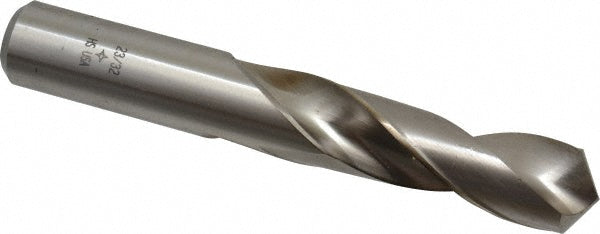

23/32" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04636
MFR# C04636Series 2120
$51.13List $64.43
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size23/32
Flutes2
Description
The Cleveland C04636 is a 23/32" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 3 flute length, 4-3/4 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in23/32
Drill bit size range0.6000+
Drill length typeShort
Drill point angle118
Flute length in3
Flute typeSpiral
Number of flutes2
Overall length in4-3/4
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.7188
Shank length in1-3/4
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
