Cleveland

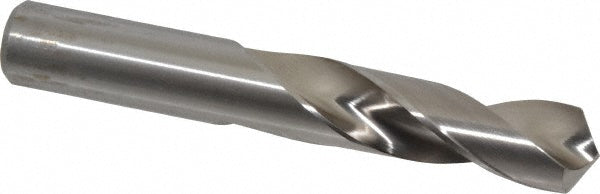

3/4" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04640
MFR# C04640Series 2120
$55.68List $71.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/4
Flutes2
Description
The Cleveland C04640 is a 3/4" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 3-1/8 flute length, 5 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in3/4
Drill bit size range0.6000+
Drill length typeShort
Drill point angle118
Flute length in3-1/8
Flute typeSpiral
Number of flutes2
Overall length in5
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.7500
Shank length in1-7/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
