Cleveland

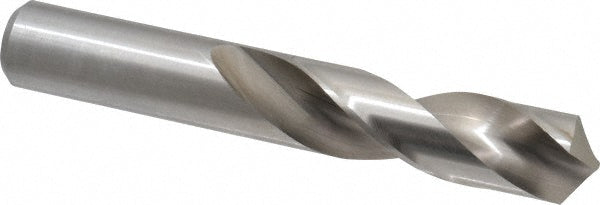

13/16" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04647
MFR# C04647Series 2120
$63.22List $81.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/16
Flutes2
Description
The Cleveland C04647 is a 13/16" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 3-3/8 flute length, 5-1/4 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in13/16
Drill bit size range0.6000+
Drill length typeShort
Drill point angle118
Flute length in3-3/8
Flute typeSpiral
Number of flutes2
Overall length in5-1/4
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.8125
Shank length in1-7/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
