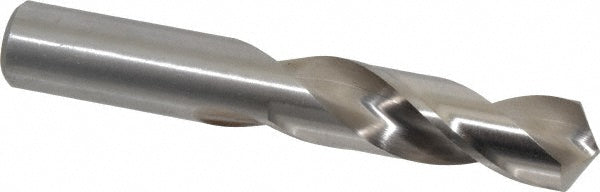

27/32" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04650

Cleveland

27/32" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04650

MFR# C04650Series 2120

$67.07List $86.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size27/32
Flutes2

Description

The Cleveland C04650 is a 27/32" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 3-1/2 flute length, 5-3/8 overall length. Series 2120.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in27/32
Drill bit size range0.6000+
Drill length typeShort
Drill point angle118
Flute length in3-1/2
Flute typeSpiral
Number of flutes2
Overall length in5-3/8
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.8438
Shank length in1-7/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
