Cleveland

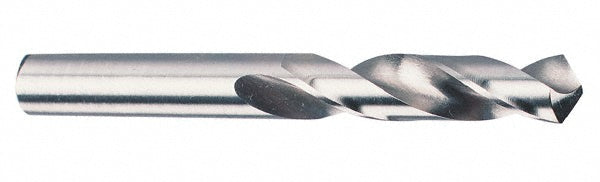

63/64" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04667
MFR# C04667Series 2120
$93.08List $117.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size63/64
Flutes2
Description
The Cleveland C04667 is a 63/64" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 4 flute length, 6 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in63/64
Drill bit size range0.6000+
Drill length typeShort
Drill point angle118
Flute length in4
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter0.9844
Shank length in2
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
