Cleveland
1" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04668
MFR# C04668Series 2120
$92.87List $119.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1
Flutes2
Description

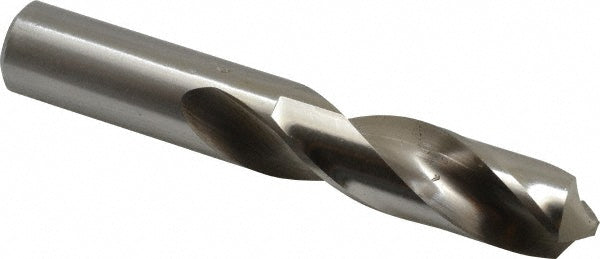

The Cleveland C04668 is a 1" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 4 flute length, 6 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in1
Drill bit size range0.6000+
Drill length typeShort
Drill point angle118
Flute length in4
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter1.0000
Shank length in2
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
