Cleveland

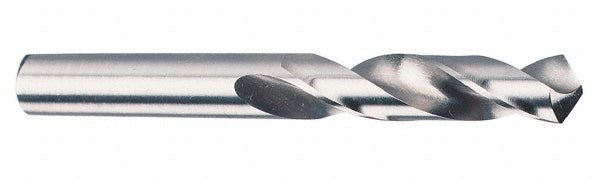

1-3/16" High-Speed Steel Short Drill Bit, 118° point - Cleveland C04690
MFR# C04690Series 2120
$133.69List $171.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1-3/16
Flutes2
Description
The Cleveland C04690 is a 1-3/16" High-Speed Steel Short drill bit, 118° point. Suited for alloy, aluminum. 4-1/4 flute length, 6-5/8 overall length. Series 2120.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0015 in
Drill bit gradeGeneral Purpose
Drill bit size in1-3/16
Drill bit size range0.6000+
Drill length typeShort
Drill point angle118
Flute length in4-1/4
Flute typeSpiral
Number of flutes2
Overall length in6-5/8
Point typeStandard
Primary workpiece materialAlloy; Aluminum
Shank diameter1.0000
Shank length in2-1/4
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
