Cleveland

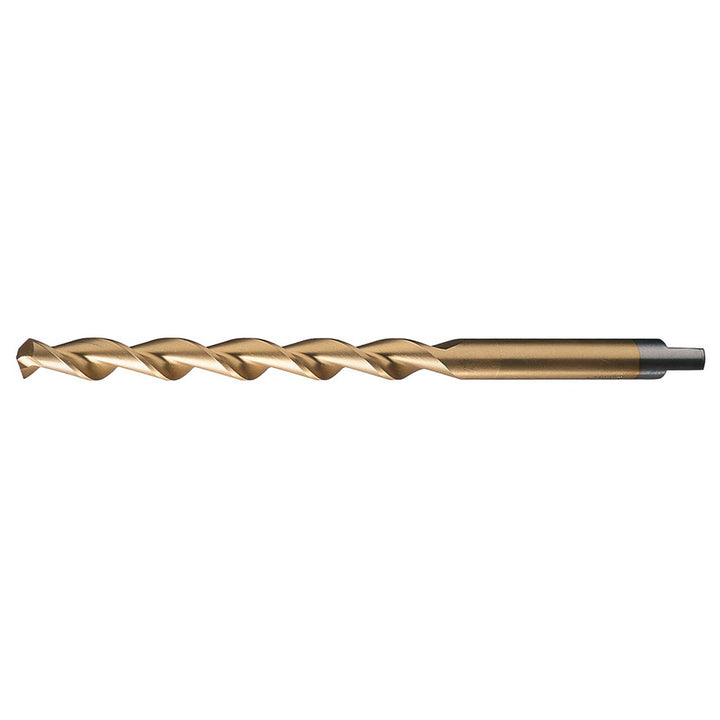

1/8" HSS Drill Bit, TiN, 118° point - Cleveland C05131
MFR# C05131Series 2565TN
$12.49List $16.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
CoatingTiN
Description
The Cleveland C05131 is a 1/8" HSS drill bit with a TiN finish, 118° point. 2-3/4 flute length. Series 2565TN.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in1/8
Drill point angle degrees118
Flute length in2-3/4
Flute typeParabolic
Material applicationAlloy Steel; Aluminum; Carbon Steel; Copper Alloy; Non-Ferrous Metal; Stainless Steel
Overall length5-1/8
Point typeNotched
Shank diameter0.1250
Shank length2.3750
Shank typeTanged
StandardsASME B94.11M
Threaded shankNo
Tool materialHSS
Web configurationTapered
Web thinningWeb-Thinned
