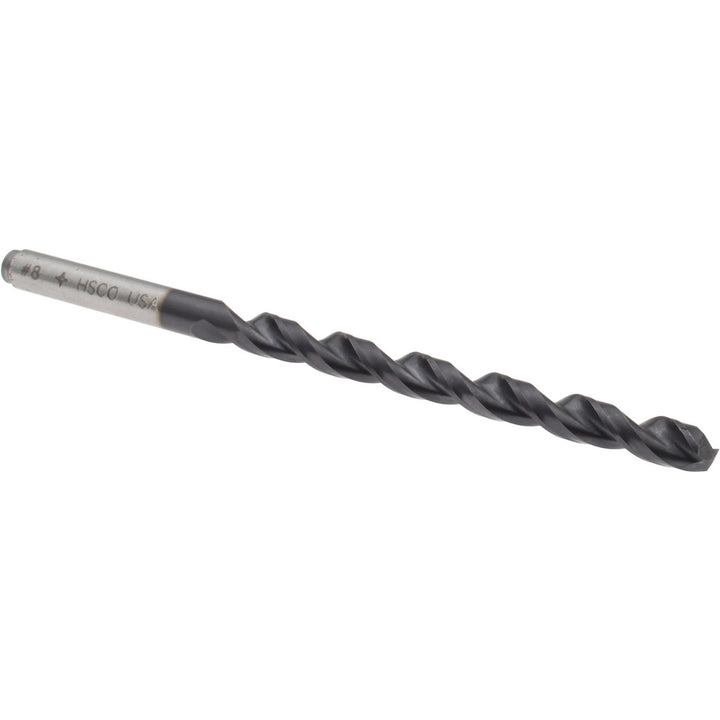

#8 Cobalt Drill Bit, TiAlN, 135° point - Cleveland C11408

Cleveland

#8 Cobalt Drill Bit, TiAlN, 135° point - Cleveland C11408

MFR# C11408

$22.76List $29.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingTiAlN

Description

The Cleveland C11408 is a #8 Cobalt drill bit with a TiAlN finish, 135° point. Suited for stainless steel, cast iron. 2-7/16 flute length, 3-5/8 overall length.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1990
Drill bit size range0.1500 - 0.2000
Drill bit size wire#8
Drill point angle degrees135
Flute length in2-7/16
Flute typeParabolic
Material gradeM42
Overall length in3-5/8
Point typeSplit Point
Primary workpiece materialStainless Steel; Cast Iron
Shank diameter0.1990
Shank typeStraight
Specification designationANSI
Web configurationTapered
Web thinningWeb-Thinned
