Cleveland

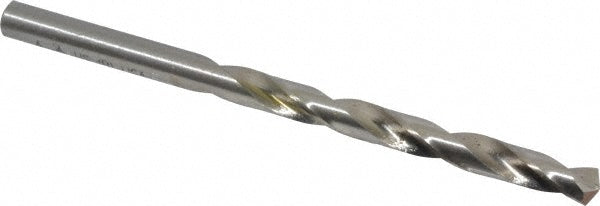

Letter A High Speed Steel Drill Bit, 135° point - Cleveland C11630
MFR# C11630Series 2222
$4.69List $6.01
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C11630 is a Letter A High Speed Steel drill bit, 135° point. Suited for aluminum. 2-5/8 flute length, 3-7/8 overall length. Series 2222.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.2340
Drill bit size letterA
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Flute length in2-5/8
Flute typeSpiral
Number of flutes2
Overall length in3-7/8
Point typeSplit
Primary workpiece materialAluminum
Shank diameter0.2340
Shank length1.2500
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Web configurationTapered
Web thinningWeb-Thinned
