Cleveland

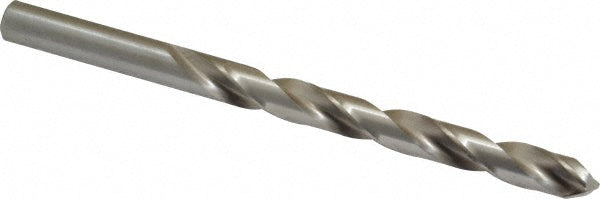

Letter P High Speed Steel Drill Bit, 135° point - Cleveland C11644
MFR# C11644Series 2222
$7.73List $9.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C11644 is a Letter P High Speed Steel drill bit, 135° point. Suited for aluminum. 3-5/16 flute length, 4-5/8 overall length. Series 2222.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.3230
Drill bit size letterP
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-5/16
Flute typeSpiral
Number of flutes2
Overall length in4-5/8
Point typeSplit
Primary workpiece materialAluminum
Shank diameter0.3230
Shank length1.3125
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Web configurationTapered
Web thinningWeb-Thinned
