Cleveland

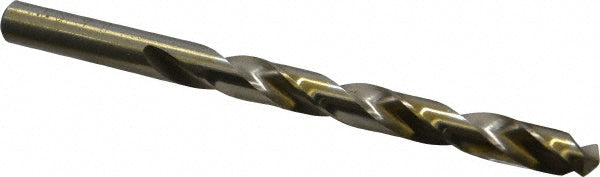

Letter U High Speed Steel Drill Bit, 135° point - Cleveland C11649
MFR# C11649Series 2222
$9.50List $12.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C11649 is a Letter U High Speed Steel drill bit, 135° point. Suited for aluminum. 3-5/8 flute length, 5 overall length. Series 2222.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.3680
Drill bit size letterU
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-5/8
Flute typeSpiral
Number of flutes2
Overall length in5
Point typeSplit
Primary workpiece materialAluminum
Shank diameter0.3680
Shank length1.3750
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Web configurationTapered
Web thinningWeb-Thinned
