Cleveland
Letter X High Speed Steel Drill Bit, 135° point - Cleveland C11652
MFR# C11652Series 2222
$11.89List $15.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

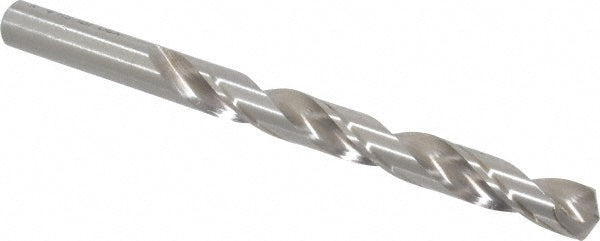

The Cleveland C11652 is a Letter X High Speed Steel drill bit, 135° point. Suited for aluminum. 3-3/4 flute length, 5-1/8 overall length. Series 2222.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.3970
Drill bit size letterX
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-3/4
Flute typeSpiral
Number of flutes2
Overall length in5-1/8
Point typeSplit
Primary workpiece materialAluminum
Shank diameter0.3970
Shank length1.3750
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Web configurationTapered
Web thinningWeb-Thinned
