Cleveland

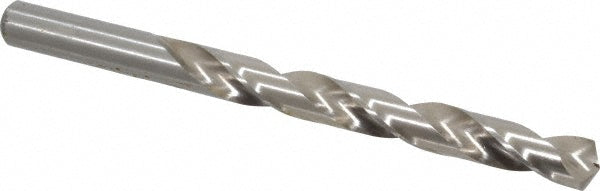

Letter Z High Speed Steel Drill Bit, 135° point - Cleveland C11654
MFR# C11654Series 2222
$13.11List $16.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C11654 is a Letter Z High Speed Steel drill bit, 135° point. Suited for aluminum. 3-7/8 flute length, 5-1/4 overall length. Series 2222.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.4130
Drill bit size letterZ
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in3-7/8
Flute typeSpiral
Number of flutes2
Overall length in5-1/4
Point typeSplit
Primary workpiece materialAluminum
Shank diameter0.4130
Shank length1.3750
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Web configurationTapered
Web thinningWeb-Thinned
