Cleveland

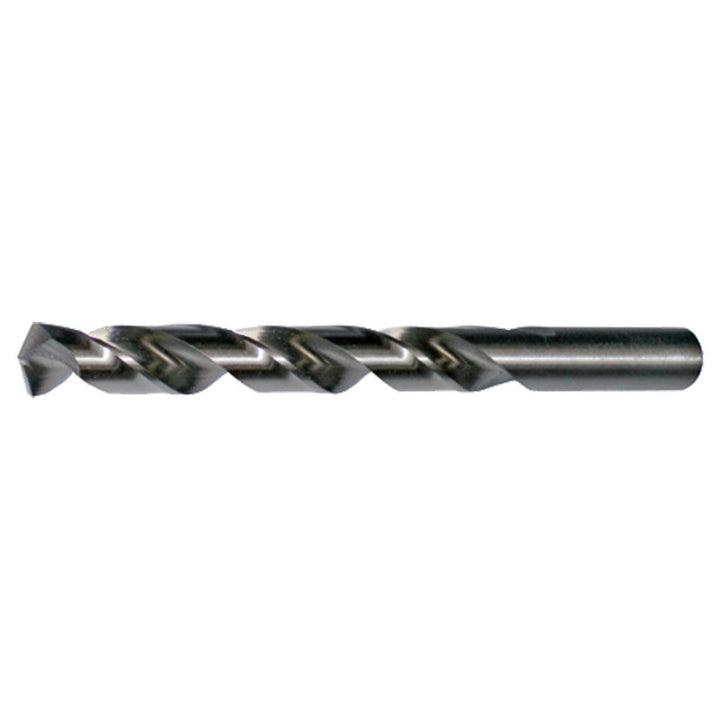

0.1181" High Speed Steel Drill Bit, 135° point - Cleveland C11820
MFR# C11820Series 2222
$2.63List $3.30
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C11820 is a 0.1181" High Speed Steel drill bit, 135° point. Suited for aluminum. Series 2222.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.1181
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length1.2992
Flute typeSpiral
Number of flutes2
Overall length2.4016
Point typeSplit
Primary workpiece materialAluminum
Shank diameter0.1181
Shank length1.1024
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907-B
Spiral typeRegular
StandardsNAS 907 Type B
Web configurationTapered
Web thinningWeb-Thinned
