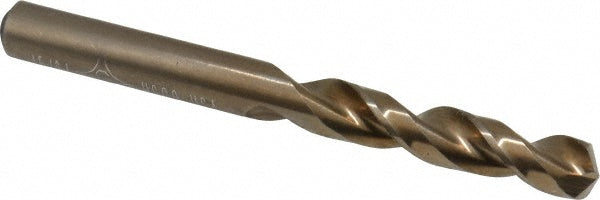

15/64" Cobalt Drill Bit, Oxide, 135° point - Cleveland C14211

MFR# C14211Series 2175

$13.51List $17.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/64
CoatingOxide

Description

The Cleveland C14211 is a 15/64" Cobalt drill bit with a Oxide finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 1-5/16 flute length, 2-7/16 overall length. Series 2175.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size in15/64
Drill bit size range0.2000 to 0.2500
Drill point angle135
Flute length in1-5/16
Flute typeParabolic
Material gradeM42
Overall length in2-7/16
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.2344
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
