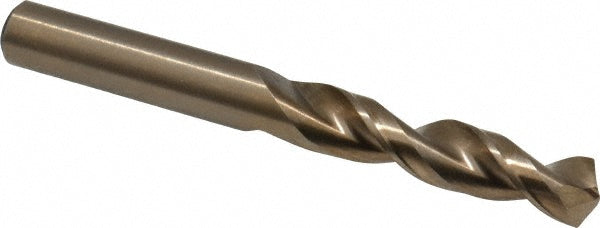

21/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14217

Cleveland

21/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14217

MFR# C14217Series 2175

$20.14List $25.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size21/64
Flutes2
CoatingCoated

Description

The Cleveland C14217 is a 21/64" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-11/16 flute length, 2-15/16 overall length. Series 2175.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in21/64
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle135
Flute length in1-11/16
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in2-15/16
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.3281
Shank length in1-1/4
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
