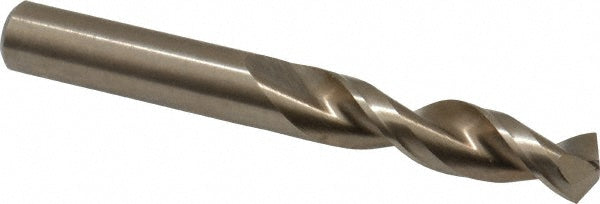

25/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14221

Cleveland

25/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14221

MFR# C14221Series 2175

$26.33List $33.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size25/64
Flutes2
CoatingCoated

Description

The Cleveland C14221 is a 25/64" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-7/8 flute length, 3-1/4 overall length. Series 2175.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in25/64
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle135
Flute length in1-7/8
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in3-1/4
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.3906
Shank length in1-5/16
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
