7/16" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14224

Cleveland

7/16" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14224

MFR# C14224Series 2175

$30.89List $39.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes2
CoatingCoated

Description

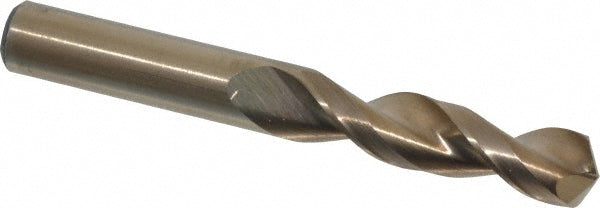

The Cleveland C14224 is a 7/16" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 2-1/16 flute length, 3-7/16 overall length. Series 2175.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in7/16
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle135
Flute length in2-1/16
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in3-7/16
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.4375
Shank length in1-5/16
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
