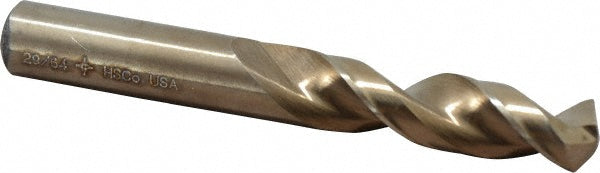

29/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14225

Cleveland

29/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14225

MFR# C14225Series 2175

$34.89List $44.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size29/64
Flutes2
CoatingCoated

Description

The Cleveland C14225 is a 29/64" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 2-1/8 flute length, 3-9/16 overall length. Series 2175.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in29/64
Drill bit size range0.4500 to 0.5000
Drill length typeScrew Machine
Drill point angle135
Flute length in2-1/8
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in3-9/16
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.4531
Shank length in1-7/16
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
