19/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14234

Cleveland

19/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14234

MFR# C14234Series 2175

$59.00List $75.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size19/32
Flutes2
CoatingCoated

Description

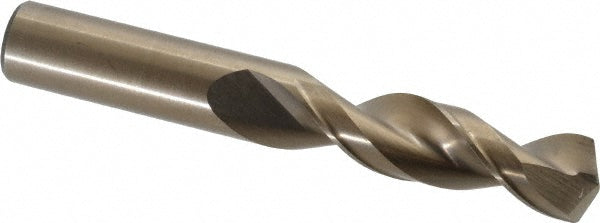

The Cleveland C14234 is a 19/32" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 2-5/8 flute length, 4-1/8 overall length. Series 2175.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeHeavy Duty
Drill bit size in19/32
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle135
Flute length in2-5/8
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in4-1/8
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.5938
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
