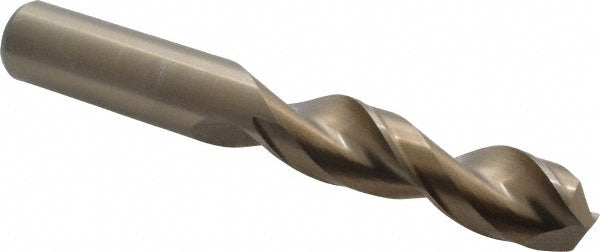

41/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14237

Cleveland

41/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14237

MFR# C14237Series 2175

$68.74List $88.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size41/64
Flutes2
CoatingCoated

Description

The Cleveland C14237 is a 41/64" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 2-7/8 flute length, 4-1/2 overall length. Series 2175.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeHeavy Duty
Drill bit size in41/64
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle135
Flute length in2-7/8
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in4-1/2
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.6406
Shank length in1-5/8
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
