Cleveland

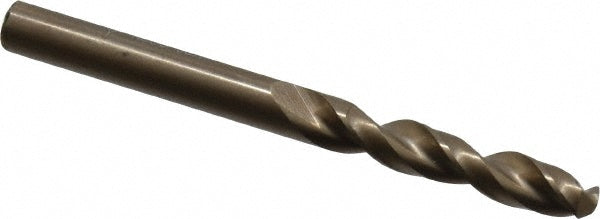

#6 Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14246
MFR# C14246Series 2175
$13.07List $16.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Cleveland C14246 is a #6 Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-1/4 flute length, 2-3/8 overall length. Series 2175.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.2040
Drill bit size range0.2000 to 0.2500
Drill bit size wire#6
Drill length typeScrew Machine
Drill point angle135
Flute length in1-1/4
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in2-3/8
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2040
Shank length in1-1/8
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
