Cleveland

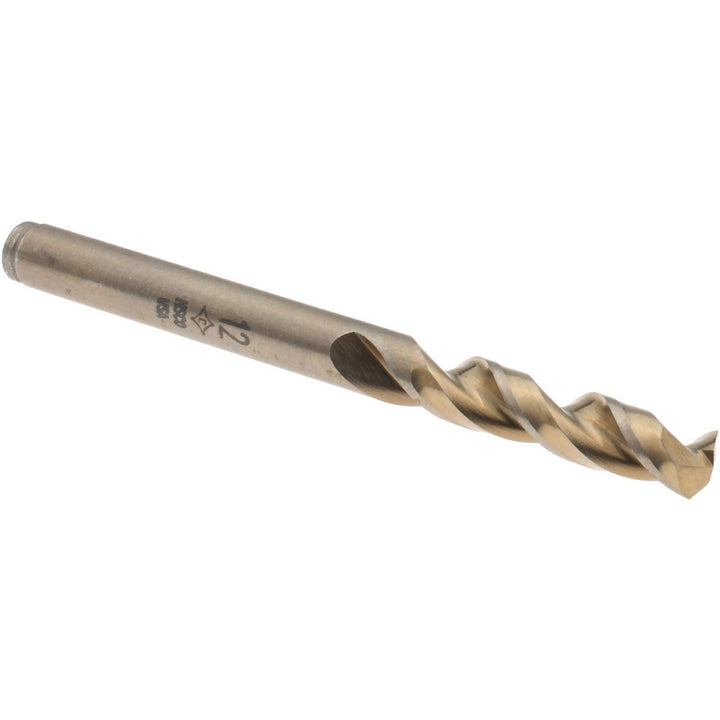

#12 Cobalt Screw Machine Drill Bit, Straw, 135° point - Cleveland C14252
MFR# C14252Series 2175
$12.05List $15.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Cleveland C14252 is a #12 Cobalt Screw Machine drill bit with a Straw finish, 135° point. Suited for alloy, aluminum. 1-3/16 flute length, 2-1/4 overall length. Series 2175.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1890
Drill bit size range0.1500 to 0.2000
Drill bit size wire#12
Drill length typeScrew Machine
Drill point angle135
Flute length in1-3/16
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in2-1/4
Point typeSplit Point
Primary workpiece materialAlloy; Aluminum
Shank diameter0.1890
Shank length in1-1/16
Shank typeStraight
Specification designationANSI
Spiral typeFast
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
