Cleveland

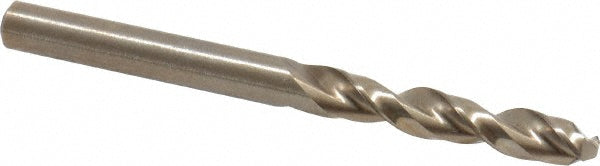

#14 Cobalt Drill Bit, Oxide, 135° point - Cleveland C14254
MFR# C14254Series 2175
$10.36List $13.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingOxide
Description
The Cleveland C14254 is a #14 Cobalt drill bit with a Oxide finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 1-1/8 flute length, 2-3/16 overall length. Series 2175.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1820
Drill bit size range0.1500 to 0.2000
Drill bit size wire#14
Drill point angle135
Flute length in1-1/8
Flute typeParabolic
Material gradeM42
Overall length in2-3/16
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.1820
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
