Cleveland

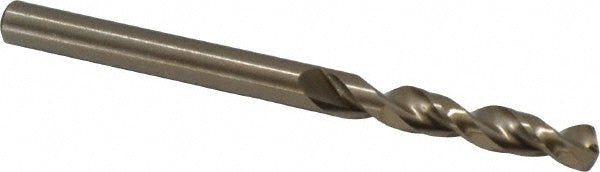

#20 Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14260
MFR# C14260Series 2175
$9.50List $12.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Cleveland C14260 is a #20 Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-1/16 flute length, 2-1/8 overall length. Series 2175.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1610
Drill bit size range0.1500 to 0.2000
Drill bit size wire#20
Drill length typeScrew Machine
Drill point angle135
Flute length in1-1/16
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in2-1/8
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.1610
Shank length in1-1/16
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
