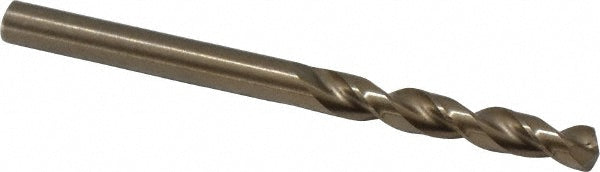

#23 Cobalt Drill Bit, Oxide, 135° point - Cleveland C14263

Cleveland

#23 Cobalt Drill Bit, Oxide, 135° point - Cleveland C14263

MFR# C14263Series 2175

$8.98List $11.32 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingOxide

Description

The Cleveland C14263 is a #23 Cobalt drill bit with a Oxide finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 1 flute length, 2-1/16 overall length. Series 2175.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1540
Drill bit size range0.1500 to 0.2000
Drill bit size wire#23
Drill point angle135
Flute length in1
Flute typeParabolic
Material gradeM42
Overall length in2-1/16
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.1540
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
