Cleveland
Letter D Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14284
MFR# C14284Series 2175
$15.20List $19.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description

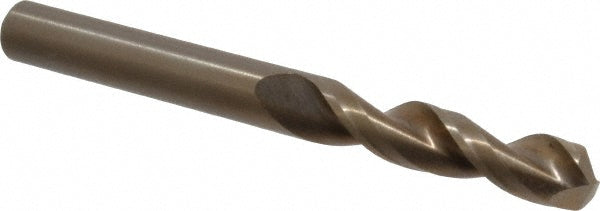

The Cleveland C14284 is a Letter D Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-3/8 flute length, 2-1/2 overall length. Series 2175.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.2460
Drill bit size letterD
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Flute length in1-3/8
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in2-1/2
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2460
Shank length in1-1/8
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
