Cleveland

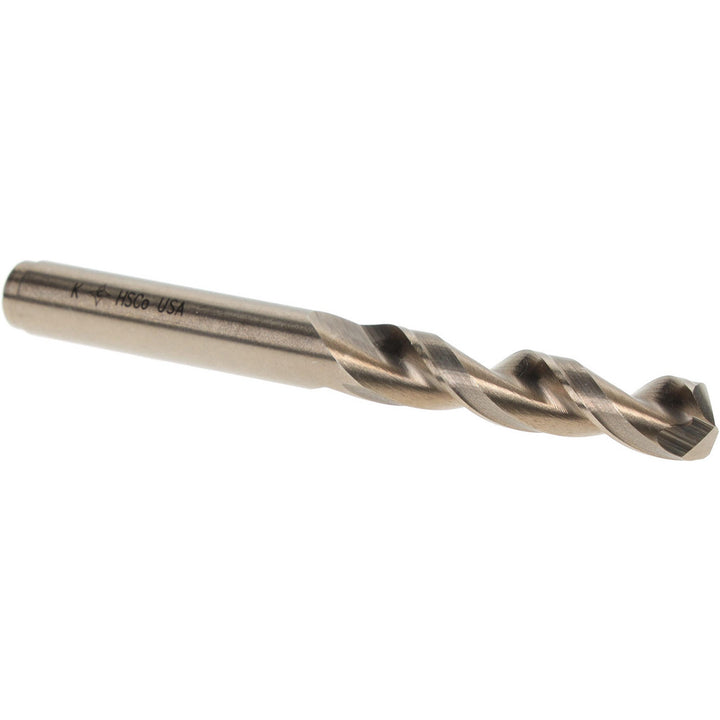

9/32" Cobalt Drill Bit, Oxide, 135° point - Cleveland C14291
MFR# C14291Series 2175
$17.57List $22.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
CoatingOxide
Description
The Cleveland C14291 is a 9/32" Cobalt drill bit with a Oxide finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 1-1/2 flute length, 2-11/16 overall length. Series 2175.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in9/32
Drill bit size letterK
Drill bit size range0.2500 to 0.3000
Drill point angle135
Flute length in1-1/2
Flute typeParabolic
Material gradeM42
Overall length in2-11/16
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.2810
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
