Cleveland

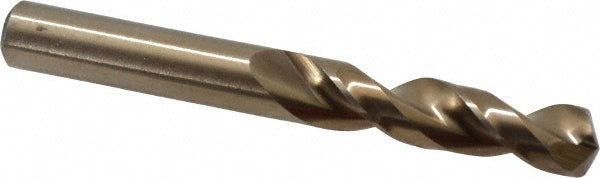

Letter S Cobalt Drill Bit, Oxide, 135° point - Cleveland C14299
MFR# C14299Series 2175
$25.53List $32.18
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingOxide
Description
The Cleveland C14299 is a Letter S Cobalt drill bit with a Oxide finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 1-3/4 flute length, 3-1/16 overall length. Series 2175.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size0.3480
Drill bit size letterS
Drill bit size range0.3000 to 0.3500
Drill point angle135
Flute length in1-3/4
Flute typeParabolic
Material gradeM42
Overall length in3-1/16
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.3480
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
