Cleveland

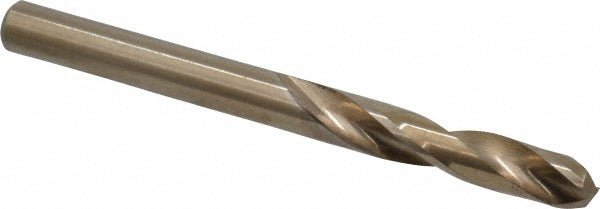

#8 Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14618
MFR# C14618Series 2133
$4.94List $6.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Cleveland C14618 is a #8 Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-3/16 flute length, 2-1/4 overall length. Series 2133.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1990
Drill bit size range0.1500 to 0.2000
Drill bit size wire#8
Drill length typeScrew Machine
Drill point angle135
Flute length in1-3/16
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in2-1/4
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.1990
Shank length in1-1/16
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
