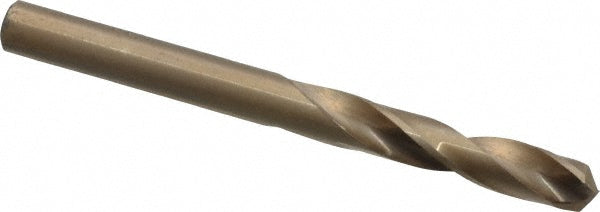

13/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14621

Cleveland

13/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14621

MFR# C14621Series 2133

$4.89List $6.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2
CoatingCoated

Description

The Cleveland C14621 is a 13/64" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-3/16 flute length, 2-1/4 overall length. Series 2133.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size in13/64
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Flute length in1-3/16
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in2-1/4
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2031
Shank length in1-1/16
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
