Cleveland

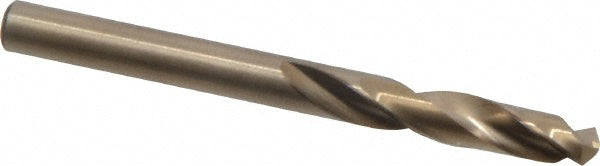

7/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14630
MFR# C14630Series 2133
$5.27List $6.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/32
Flutes2
CoatingCoated
Description
The Cleveland C14630 is a 7/32" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-1/4 flute length, 2-3/8 overall length. Series 2133.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size in7/32
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Flute length in1-1/4
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in2-3/8
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2188
Shank length in1-1/8
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
