Cleveland

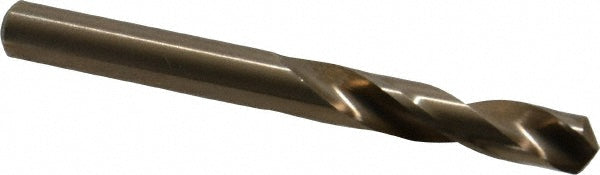

17/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14654
MFR# C14654Series 2133
$7.73List $9.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
CoatingCoated
Description
The Cleveland C14654 is a 17/64" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-1/2 flute length, 2-11/16 overall length. Series 2133.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in17/64
Drill bit size letterH
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Flute length in1-1/2
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in2-11/16
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2660
Shank length in1-3/16
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
