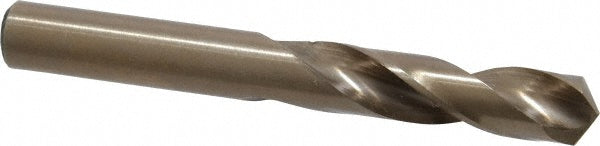

3/8" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14702

Cleveland

3/8" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14702

MFR# C14702Series 2133

$12.24List $15.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
Flutes2
CoatingCoated

Description

The Cleveland C14702 is a 3/8" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-13/16 flute length, 3-1/8 overall length. Series 2133.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in3/8
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle135
Flute length in1-13/16
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in3-1/8
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.3750
Shank length in1-3/8
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
