Cleveland

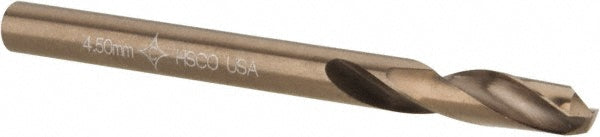

0.1772" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14805
MFR# C14805Series 2133
$4.52List $5.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Cleveland C14805 is a 0.1772" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. Series 2133.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1772
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle135
Flute length0.9450
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length2.2830
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.1772
Shank length1.3386
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
